DC Thru Diplexer

DC Thru Diplexer

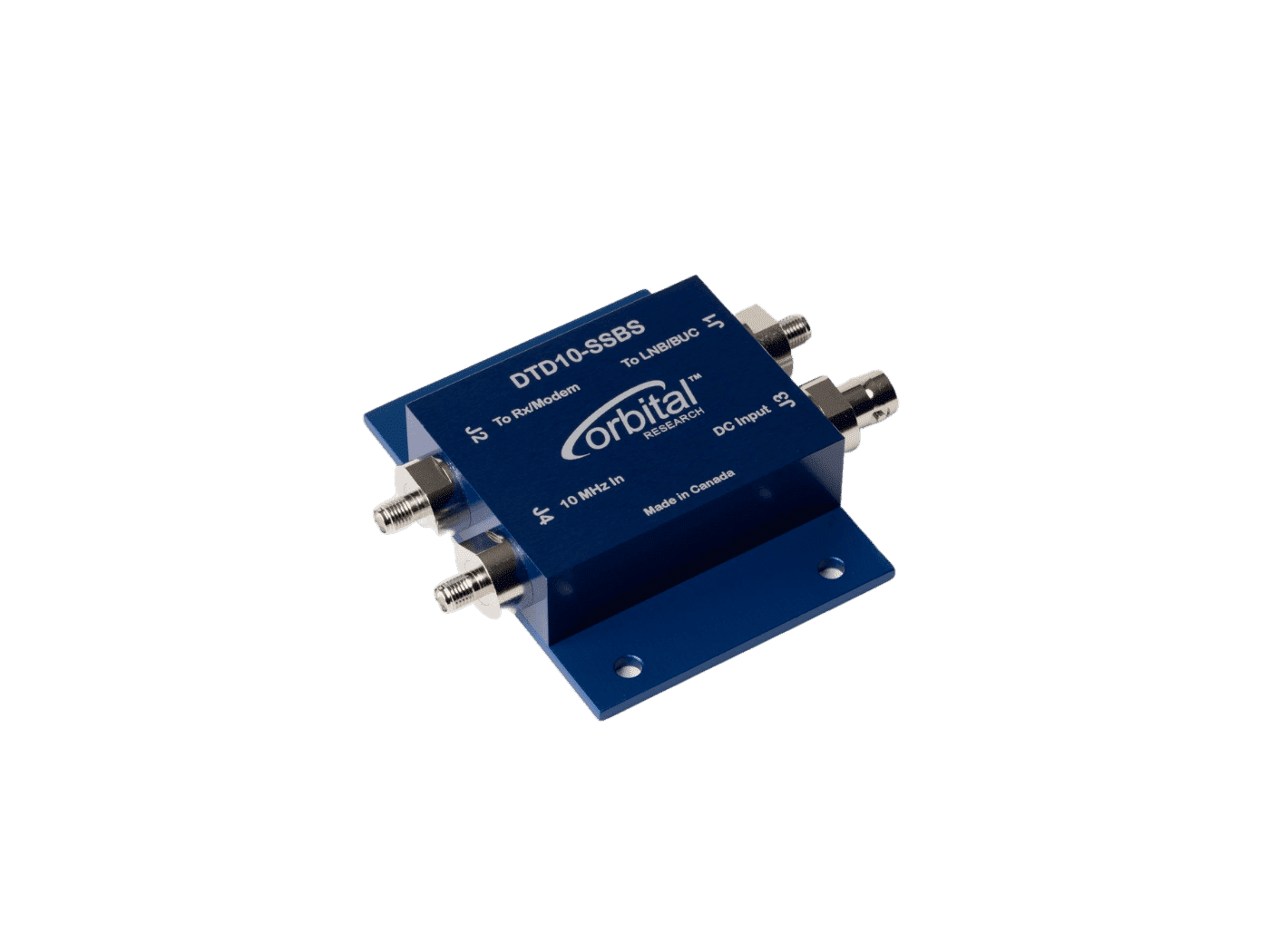

The Orbital DC Thru Diplexer (DTD-10) is a bias tee thruplexer that inserts a high-quality 10 MHz source into your LNB or BUC – in addition to passing both L-band and DC power from the modem with very low insertion loss. This small and compact device is easy to mount, can be used outdoors, and can be customized with any connector.

  • Inserts high-performance 10 MHz external reference
  • Internal filters for DC and 10 MHz noise
  • Modem 10 MHz block filters
  • Optional DC input port for redundancy
  • Extremely low thru loss and very high return loss

By introducing a high-quality external reference, our DC Thru Diplexer can help you reduce phase noise and increase the data throughput of your satellite terminals. It can also provide DC redundancy for LNBs or BUCs – by using the modem’s DC plus an optional external DC source – and increase system availability. This device is primarily designed for the satellite communications industry but is also a good fit for 4G and 5G cellular networks.

Read the brochure ›

Applications

SIP Solutions

Systems Interface Products Although Combiners and Oscillators are also SIP products, we have narrowed the definition here to just include Bias Tees, Diplexers, Mux-Tees, TTL Switches, Thru Tees, Dual Power Tees, etc.
Here are standard applications for each of these products. Here’s how to insert 10 MHz, insert DC, extract 10 MHz, block DC, extract DC, multiplex DC L band and 10 MHz, and perform impedance transforms while you do it.

Using a Hi Power Thru Tee to power a BUC Modem has DC power, but not enough to power my new BUC.
4 Way Combiner with 10 MHz Oscillator and Hi Power DC insert. I want to lock several modems to a single 10 MHz Oscillator, and insert high power DC to my BUC.
Orbital 2-way Combiner using 10 MHz from one of the modems and Hi Power Mux-Tee to insert DC power I have a pair of modems, one of which provides a 10 MHz reference, but I don’t have enough power from my modem for my new high power BUC.
Orbital Combiner/Divider stripping out the 10MHz from only one of two modems I have a pair of modems and I need to use the 10 MHz reference from one of them and split it. I need to take the L-Band signal from both modems and combine it with the 10 MHz reference. Now I need to insert DC power for a pair of high power BUCS.
Orbital Combiner/Divider using a MOS 10 MHz Oscillator I need to combine the L-Band signals from a pair of modems with an common, external 10 MHz source, and insert power to a pair of high power BUCs.
Using an Orbital Hi Power Thru Tee to circumvent a divider or switch My modem does not have sufficient DC to power my BUCs, and I can’t switch DC power to the BUC, what to do?
Horizontal/Vertical Polarity 1 for 2 Redundant System We need a system that will provide us with both horizontal and vertical polarities at Ku Band. In addition, the system must offer 1 for 2 redundancy.

More SIP Solutions

Using a Mux-Tee Using an Orbital MT-40 Mux-Tee to multiplex the L-Band, and 10 MHz reference signals with DC power for a BUC.
Using a Bias Tee Using an Orbital MT-40 Mux-Tee as a Bias Tee to insert DC Power to a BUC
Using a Diplexer Using an Orbital MT-40 Mux-Tee as a Diplexer to insert a 10 MHz reference to a BUC
Using Redundant Power Tee Using an Orbital Redundant Power Tee provides inexpensive power supply redundancy.
Using a Thru Tee Using an Orbital Thru Tee to provide a separate DC power supply to the BUC, while passing the 10 MHz signal through from the modem.
