Orbital Research LTD

Thru Tee (Bias Tee Thruplexer)

Thru Tee (Bias Tee Thruplexer)

Regular price $305.00 USD
Regular price Sale price $305.00 USD
Sale Sold out

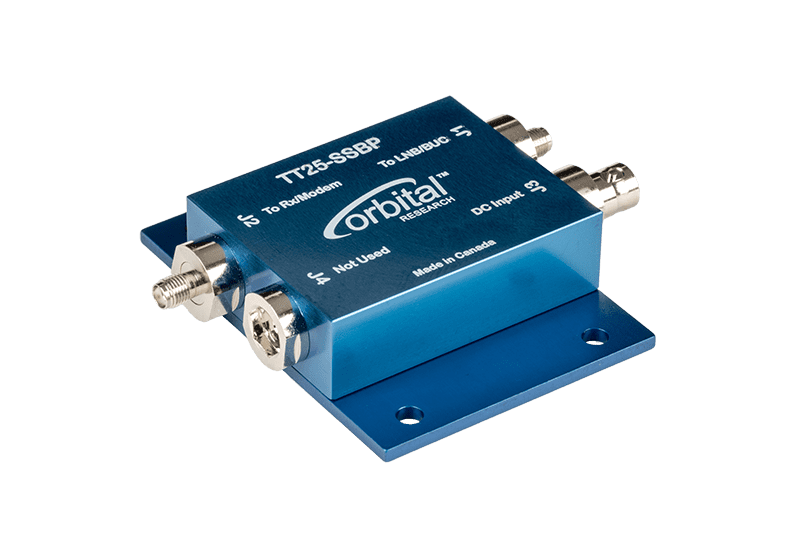

The Orbital Thru Tee (TT-25/40) is a bias tee “thruplexer” that passes both L-band and 10 MHz signals between your modem and low noise block downconverter (LNB) or block upconverter (BUC) – in addition to inserting an external DC power source of up to 4.0 amps. The Thru Tee uses internal filters to block DC from the modem and minimize 10 MHz noise – delivering extremely low thru loss and very high return loss. Primarily designed for the satellite communications industry, the Orbital Thru Tee is also a good fit for any commercial application including 4G and 5G cellular networks.

  •  Filters L-band/10 MHz signals and inserts DC
  • Choice of connectors and mounting options
  • Customizable form factor
  • Stackable with other Orbital products

This product often used to allow insertion of DC voltage where the indoor modem/equipment either has no ability to provide DC on its IF Receive interface or cannot provide sufficient power for the outdoor LNB/BUC.

Download brochure


SKU:TT25-FFBP

View full details

How to Order?

For pricing, configuration and customization please call 1-604-419-8585 or contact us.
