1:1 C-Band LNA Redundancy System

1:1 C-Band LNA Redundancy System

RSSLNA1:1 C-Band Redundancy

pdf icon Click to download specs & mechanical PDF

Options

The outdoor unit can be made available with following options

  • Transmit Reject Filter
  • Offline Input & Output
  • Input Waveguide/Coaxial Test couplers
  • Output coaxial Test couplers
  • Custom configurations
  • M&C via Ethernet

Orbital ODU Features:

  • Uses standard LNAs from any manufacturer. LNAs can be included and tested in the system
  • The Outdoor Unit is mounted on one rail.
  • Both IDU and ODU are pre-assembled (if LNA is included). Just connect the cables and waveguide. Mount the ODU, and plug the redundant power supplies in.

Orbital IDU Features:

  • 1 unit high chassis. Simple LED display for monitoring. No cumbersome LCD menu to work through
  • Two Power Supplies are outside of chassis for easy service and replacement. Optionally, the power supplies can be placed inside the chassis.
  • Unit automatically detects Power Supply faults. Global power supplies to use anywhere in the world.
  • Manual or automatic switching between LNAs
  • Ku and Ka-Band versions also available
  • 1:2 versions available
  • LNB versions also available

Cloud Based Remote User Interface Features:

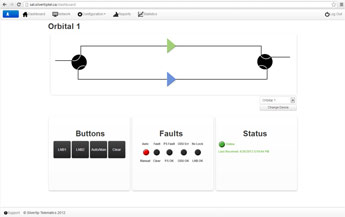

  • Direct mimic of physical front panel.
  • Shows status in real time with near instantaneous status updates and control functionality.
  • Additional statistics and diagnostics available.
  • Works with standard web browsers – no need for complicated proprietary MAC systems
  • Can easily be integrated into existing network monitoring infrastructure

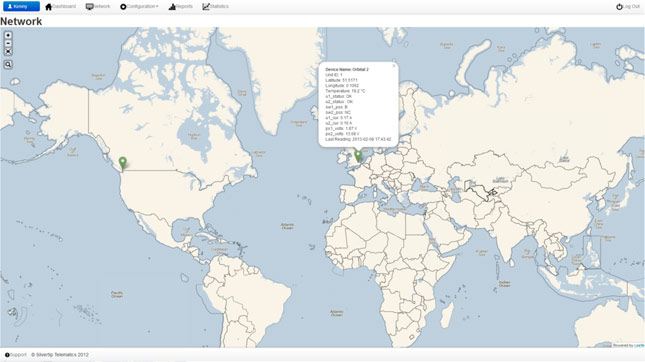

  • Top level map can show summary status of multiple systems in a network
  • System automatically connects to the Cloud Server through an Ethernet connection and the Internet

How to order

For pricing options please call 1-604-419-8585 or contact us.
